Electric Thermal Oil Cooking Mixer

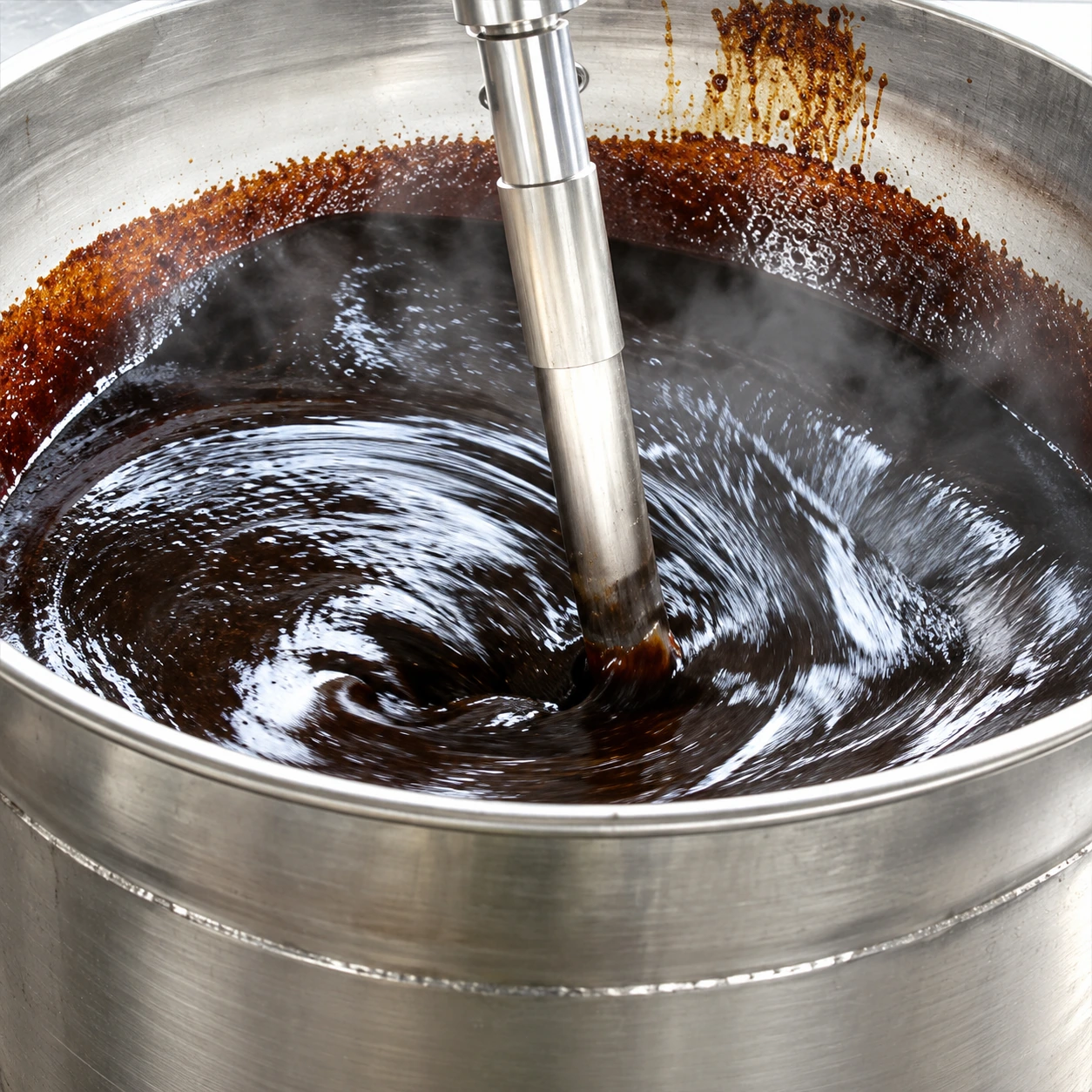

Electric thermal oil cooking mixer for uniform heating and planetary mixing of fillings and other viscous ingredients.
A closer look.
Electric thermal oil cooking mixer for uniform heating and planetary mixing of fillings and other viscous ingredients.
- Electric heating through thermal oil
- Controlled heating temperature

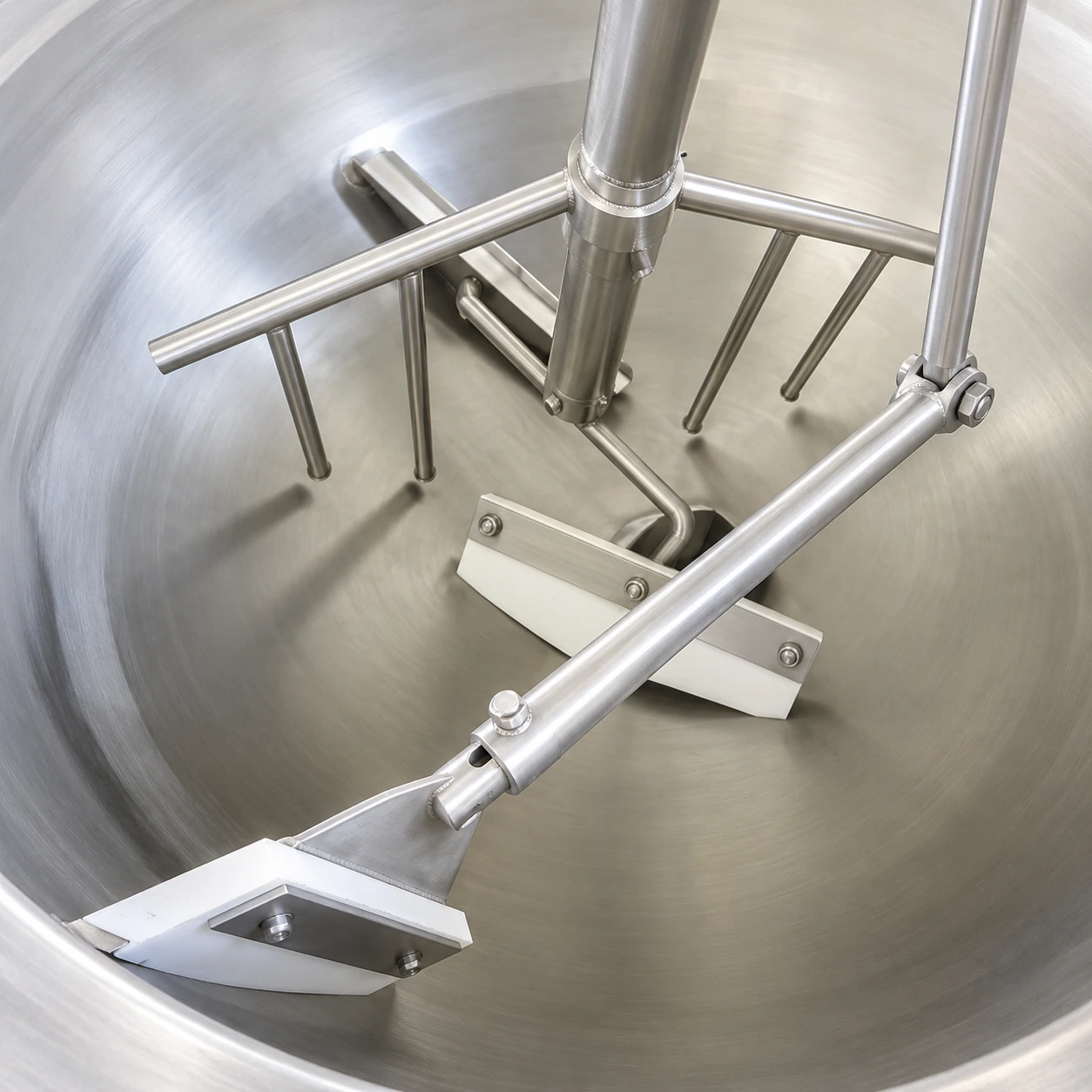

- Planetary bottom scraping
- Hydraulic discharge
Applications: Bean paste, Lotus seed paste, Ejiao products
The details
that matter.
| Capacity | 100–500 L |
|---|---|
| Bowl diameter | 800–1200 mm |
| Bowl thickness | 8 mm |
| Motor power | 1.5–4 kW |
| Heating power | 18–36 kW |
| Discharge | Automatic hydraulic tilt |
| Mixing speed | Variable frequency control |
| Arm movement | Lift / rear tilt |
| Mixing system | Planetary mixing / bottom scraping |
| Heating | Electric thermal oil |
| Dimensions | 1850 × 1800 × 1650 mm (500 L reference) |
Catalog specifications are a starting point. Confirm the selected configuration, utilities and installation drawing with your quotation.
Plan your
next step.
Your product
Ingredients, recipe and the result you want.
Target output
Your batch size or hourly production target.
Your site
Country, utilities and available floor space.
Your configuration
The model, options and documents you need.
A clear route to your site.
Sea or air freight. A formal contract before shipment. Delivery details agreed with you.
Shipping & order process- Discuss your requirements
- Confirm the quote & sign the contract
- Prepare, pack & dispatch
- Coordinate transport & delivery
