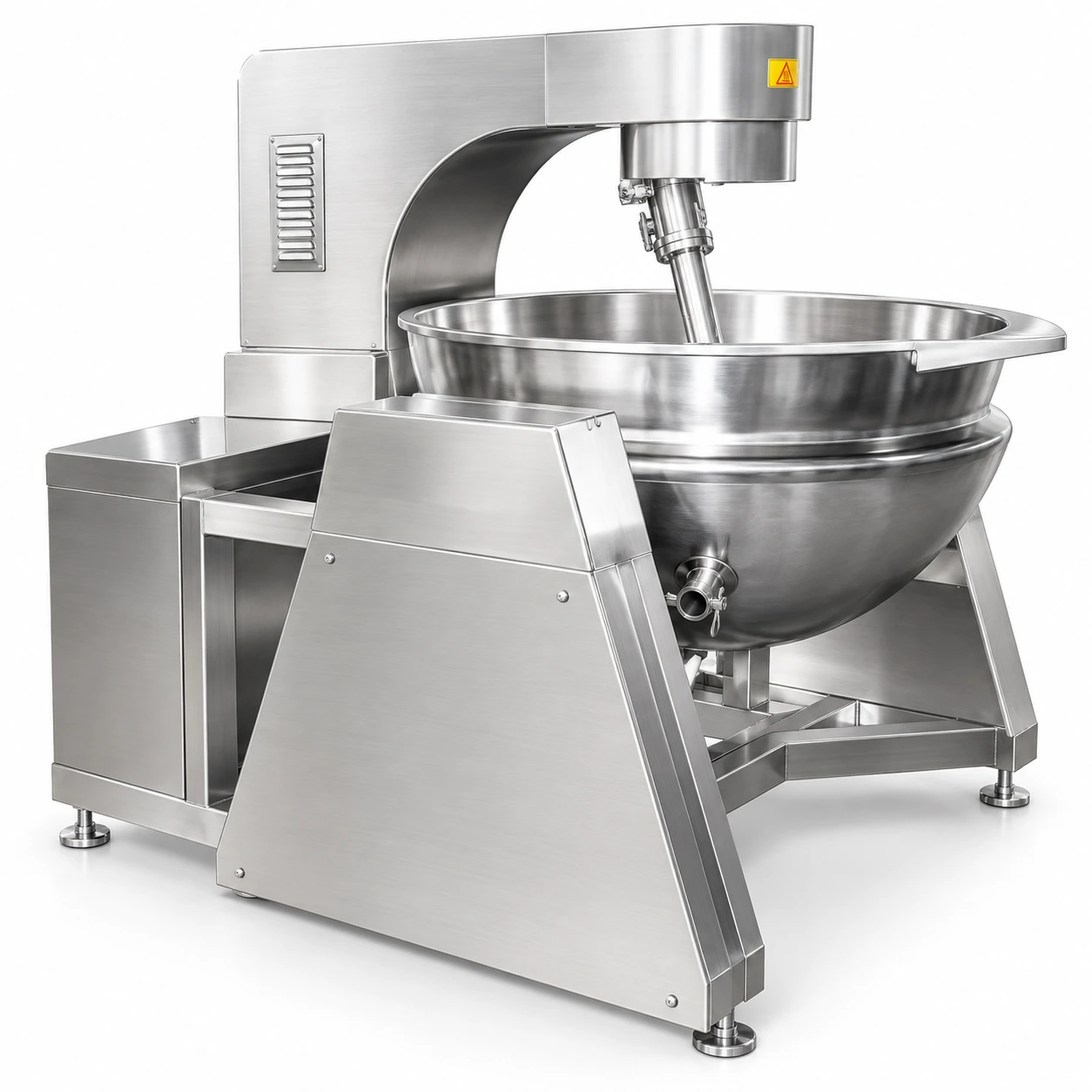

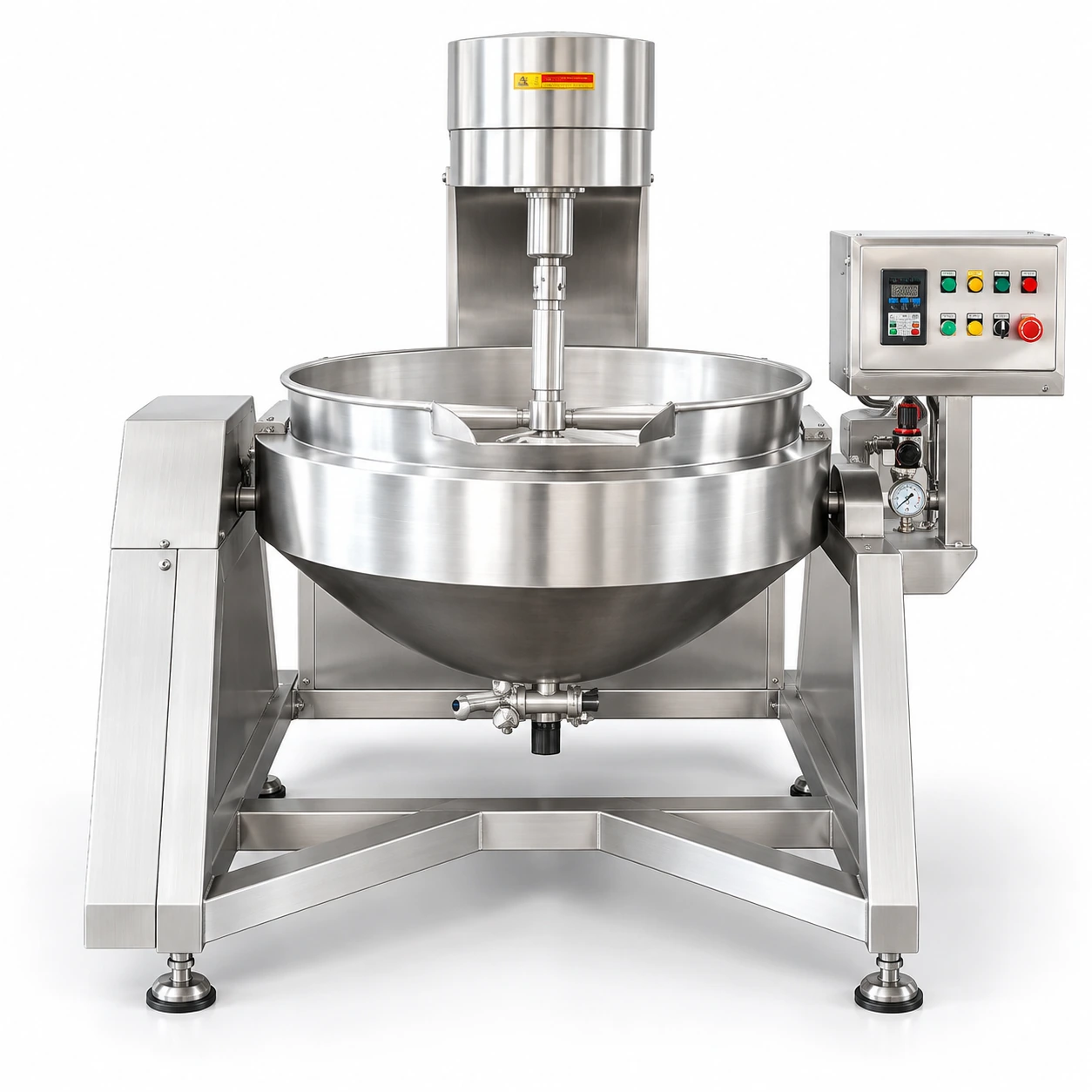

AI-enhanced catalog illustration · confirm machine details with your quotation
Steam Cooking Mixer
Steam-heated cooking mixer for food materials that require indirect heating and continuous stirring.
A closer look.
Steam-heated cooking mixer for food materials that require indirect heating and continuous stirring.
- Steam jacket heating
- Planetary mixing and bottom scraping

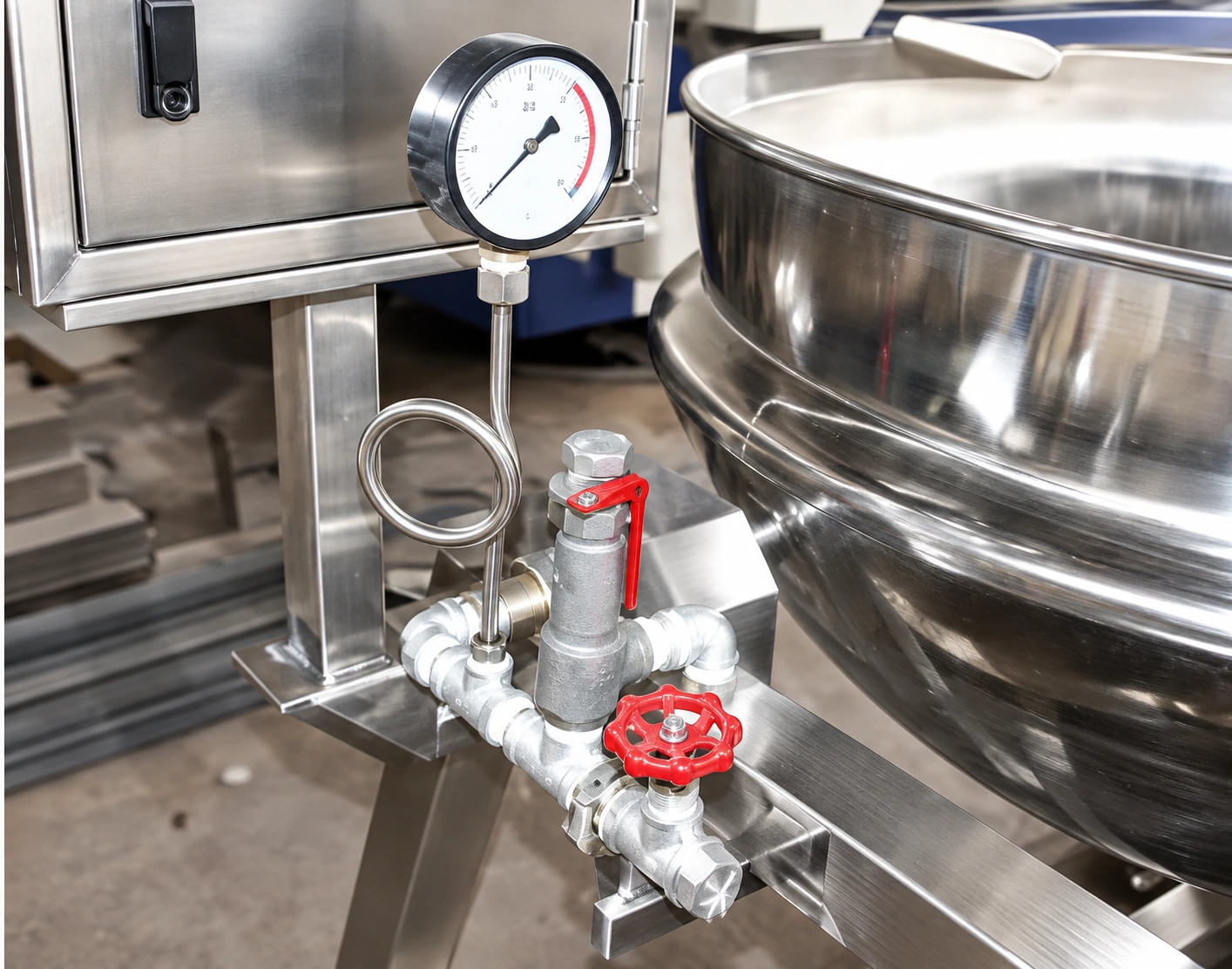

- Pressure gauge and safety valve described in the catalog
- Hydraulic tilting discharge
Applications: Aquatic products, Snack fillings, Meat floss
The details
that matter.
| Capacity | 100–500 L |
|---|---|
| Bowl diameter | 800–1200 mm |
| Bowl thickness | 4–5 mm |
| Motor power | 1.5–4 kW |
| Discharge | Automatic hydraulic tilt |
| Mixing speed | Variable frequency control |
| Arm movement | Lift / rear tilt |
| Mixing system | Planetary mixing / bottom scraping |
| Heating | Steam |
| Dimensions | 1800 × 1650 × 1600 mm (200 L reference) |
Catalog specifications are a starting point. Confirm the selected configuration, utilities and installation drawing with your quotation.
