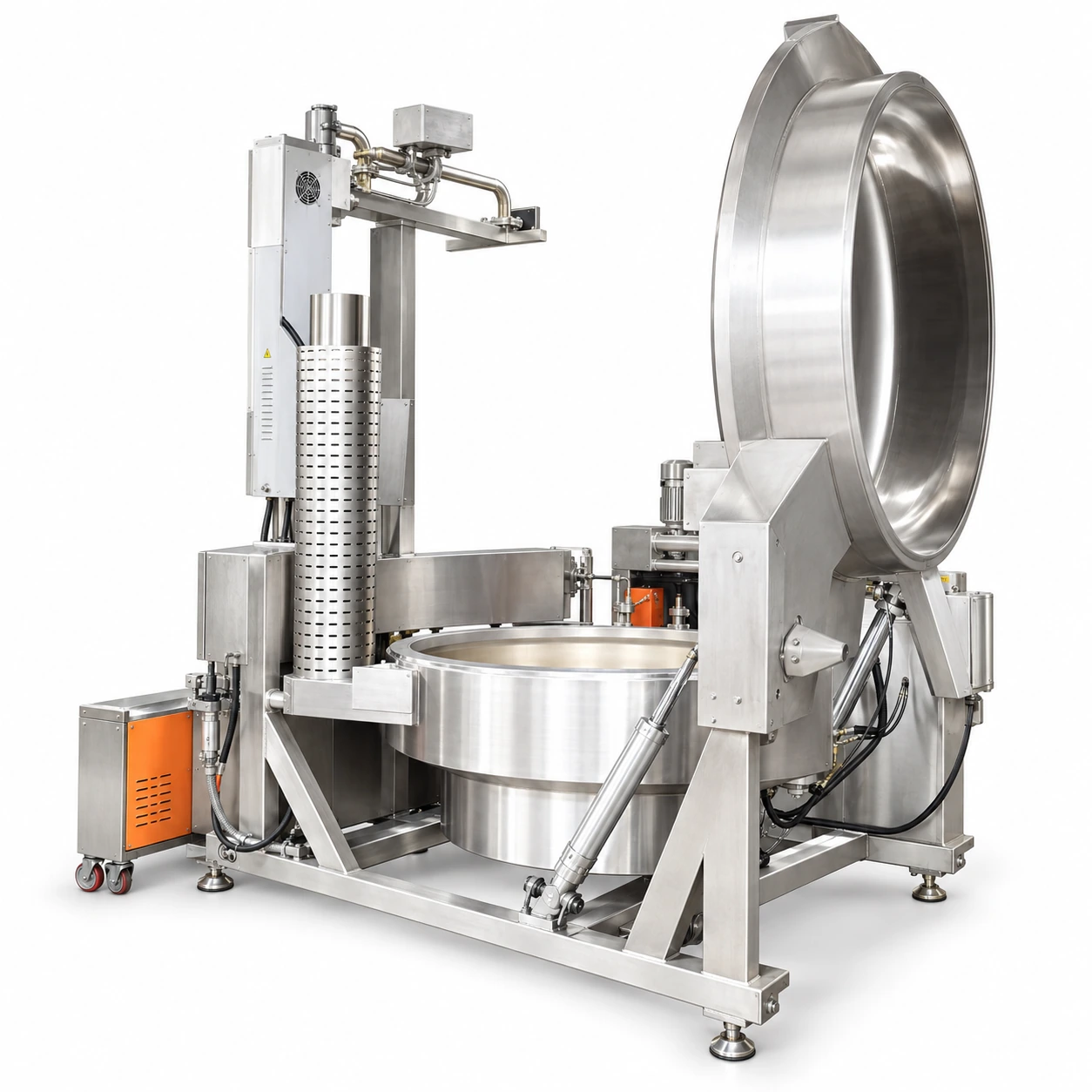

Hot Pot Base Cooking Mixer
Large gas cooking mixer for hot pot bases and sauces, combining planetary mixing with side and bottom scraping.
A closer look.
Large gas cooking mixer for hot pot bases and sauces, combining planetary mixing with side and bottom scraping.
- Planetary mixing with side and bottom scraping
- Temperature probe in contact with ingredients
- Variable speed drive
- Hydraulic tilt discharge
Applications: Hot pot base, Chili sauce, Beef sauce, Instant noodle sauce
The details
that matter.
| Capacity | 600 / 800 L |
|---|---|
| Bowl diameter | 1400 mm |
| Bowl thickness | 8 mm |
| Motor + hydraulic power | 4 + 1.5 kW |
| Mixing speed | Variable frequency control |
| Discharge | Automatic hydraulic tilt |

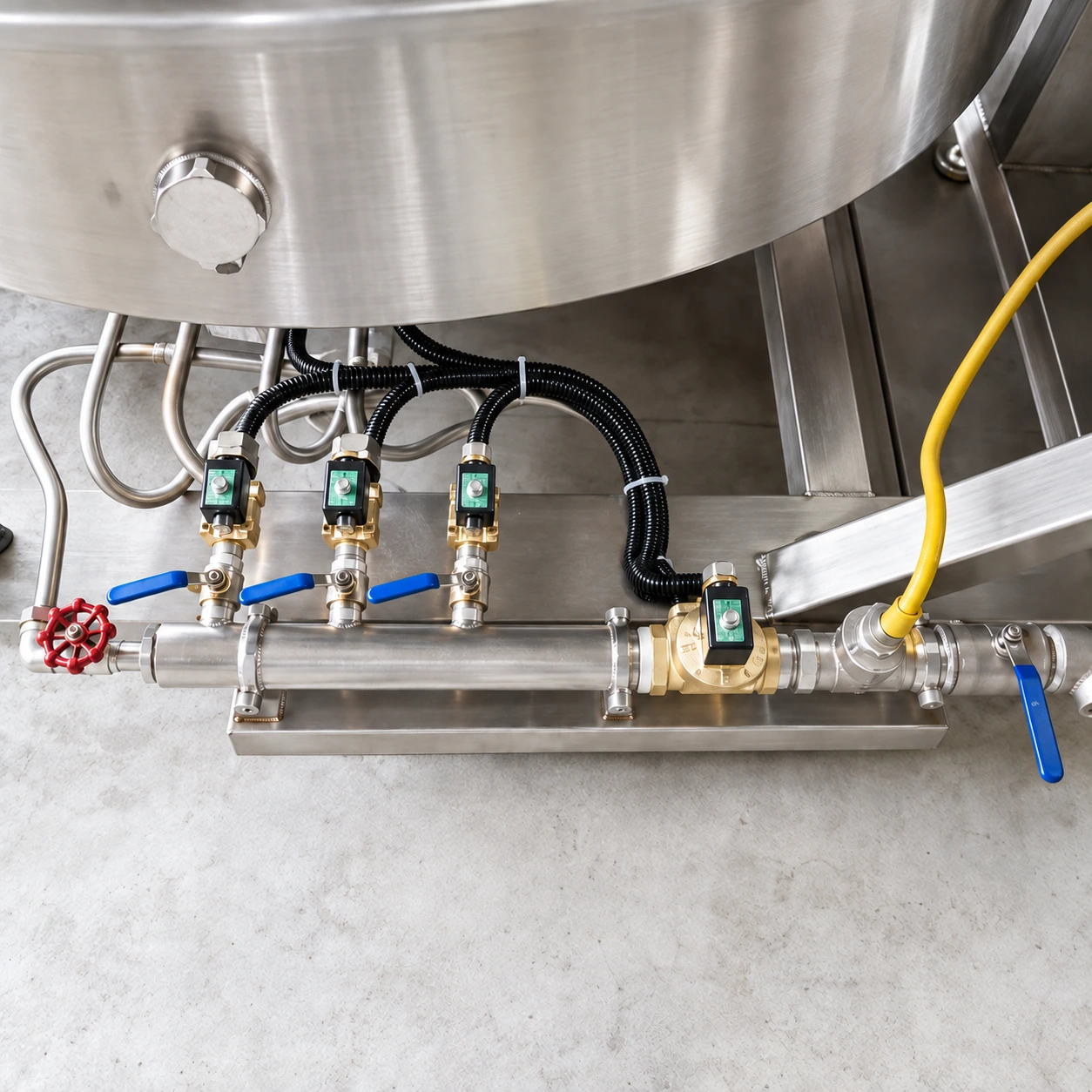

| Heating | LPG / natural gas |
| Ignition | Automatic / manual |
| Dimensions | 2600 × 2250 × 2050 mm |
Catalog specifications are a starting point. Confirm the selected configuration, utilities and installation drawing with your quotation.
Plan your
next step.
Your product
Ingredients, recipe and the result you want.
Target output
Your batch size or hourly production target.
Your site
Country, utilities and available floor space.
Your configuration
The model, options and documents you need.
A clear route to your site.
Sea or air freight. A formal contract before shipment. Delivery details agreed with you.
Shipping & order process- Discuss your requirements
- Confirm the quote & sign the contract
- Prepare, pack & dispatch
- Coordinate transport & delivery
